Machine vision quality control
Vision-Based Fill Inspection Systems UK

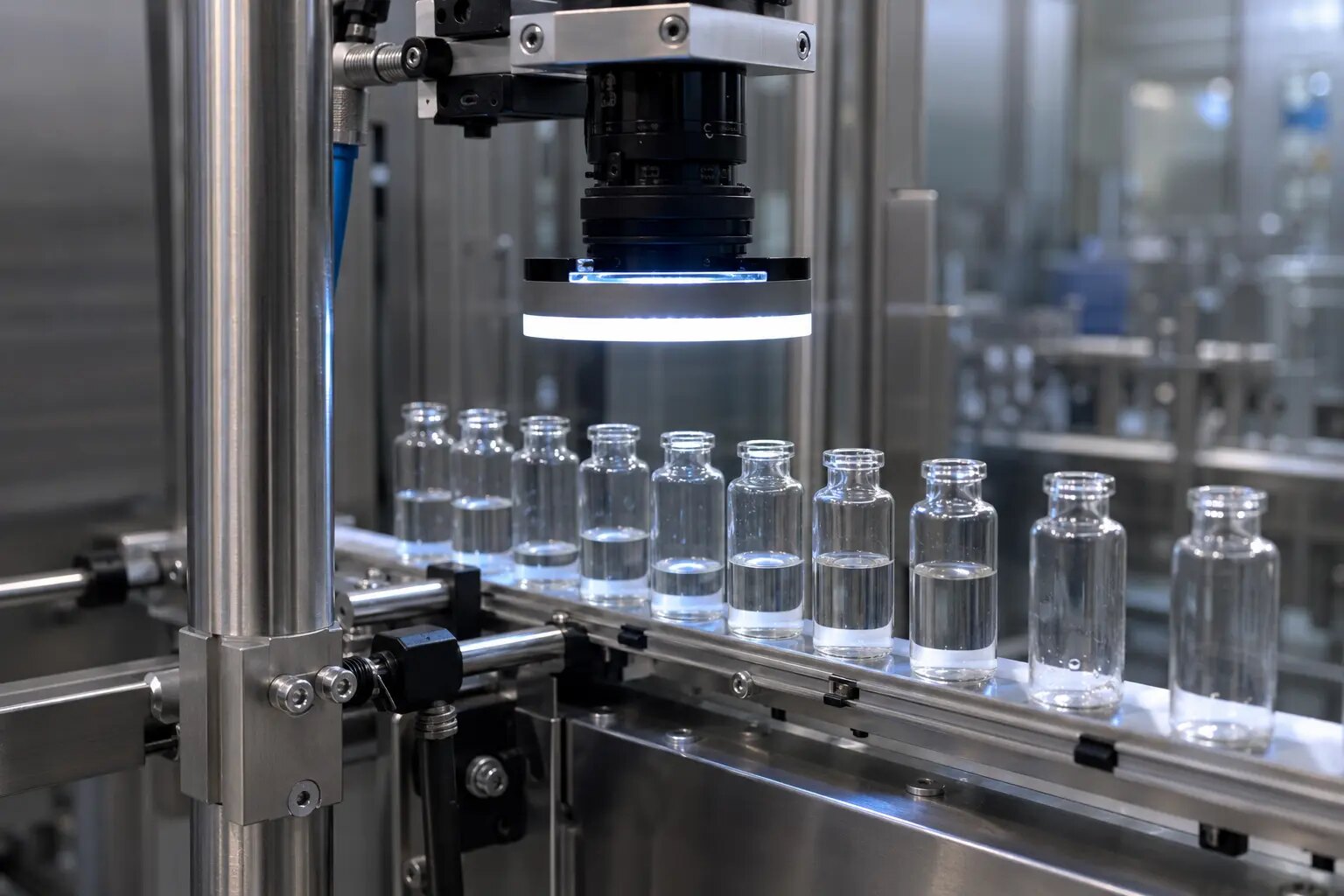

Use controlled lighting and industrial cameras to verify visible fill boundaries and combine level, cap, label, colour, shape, code and presence checks at production speed.
Direct answer
When is machine vision suitable for fill-level inspection?
Machine vision is suitable when the fill boundary or product feature can be made consistently visible to a camera. A controlled light source creates contrast, the image is captured at the correct time, and software compares the measured feature with the active recipe limits.
The camera must see the product reliably through the pack or opening. Reflections, coloured material, labels, embossing, foam and ambient light are handled through the optical design and inspection logic. When there is no dependable optical path, X-ray or another sensing principle should be assessed.
What the system must do
More than a camera beside a conveyor.
Stable inspection comes from controlling presentation, illumination, trigger timing, recipe selection and the response to a failed result.
Measure
Locate the fill, foam, closure, label, colour, code, shape or presence feature within a controlled region.
Decide
Apply validated limits, track the pack and send a clear pass, reject or fault response to the line.
Specify the application
Combine compatible packaging checks.
One station can inspect several features when the views, resolution, cycle time and defect tolerances work together.
- Liquid or powder fill height and missing-product detection
- Cap presence, height, angle, colour and tamper-band checks
- Label presence, position, orientation and selected print features
- Date code, batch code, barcode or 2D code reading where image quality permits
- Container shape, colour and product-format verification
- Event images, counters, alarms, reject tracking and production data outputs
Typical applications
Visible-feature inspection for packaging lines.
Suitability and tolerances are established from representative samples, production speed and the real operating environment.
Practical answers
Questions production teams ask.
Final performance is application-specific and is confirmed using representative packs, products and line conditions.
Ask an engineerCan vision inspect a moving fill level?
Yes, if the exposure, trigger, lighting and pack presentation freeze the feature clearly enough. Line speed and product movement are tested with representative samples before final tolerances are agreed.
Can one camera inspect fill level and a cap?
Sometimes. The features must both be visible at sufficient resolution from a suitable view. Complex packs may need more than one camera or inspection position.
Does AI replace a properly engineered inspection setup?
No. AI or machine-learning tools may help with variable visual defects, but reliable inspection still depends on suitable optics, lighting, presentation, representative data and validated decision limits.
What if the container is opaque?
If the product cannot be seen reliably through the pack, an optical camera is unlikely to be the best fill-level method. X-ray or another sensor can be assessed against the product density, pack material and required result.
